Do I Need a Panel Upgrade for an EV Charger? (Bay Area Guide)

When You DON'T Need a Panel Upgrade

We tell most Bay Area homeowners — even those with old 100A panels — that they can skip the panel upgrade. Three tools let us do that safely:

1. Static Power Management on a smaller breaker

The Tesla Wall Connector and most Level 2 chargers are configurable — they don't have to run at 48A. On a 40A breaker, the Wall Connector caps at 32A continuous (7.7 kW, ~28 miles per hour). On a 30A breaker it caps at 24A (5.7 kW, ~22 miles per hour). For most daily commutes, that's plenty. A smaller breaker fits where a 60A breaker won't — and it costs nothing extra.

2. Dynamic Power Management when the panel is tight

When the panel doesn't obviously have room for even a 30A circuit, Tesla's Dynamic Power Management (DPM) steps in. A Tesla-supplied energy meter watches your panel's live load and the Wall Connector adjusts in real-time to never exceed 80% of panel capacity (the NEC continuous-load rule). When the dryer kicks on, charging throttles. When the house quiets down, charging ramps to full speed. ChargeWizards installs DPM for $550 — see our DPM deep-dive guide for the full mechanics.

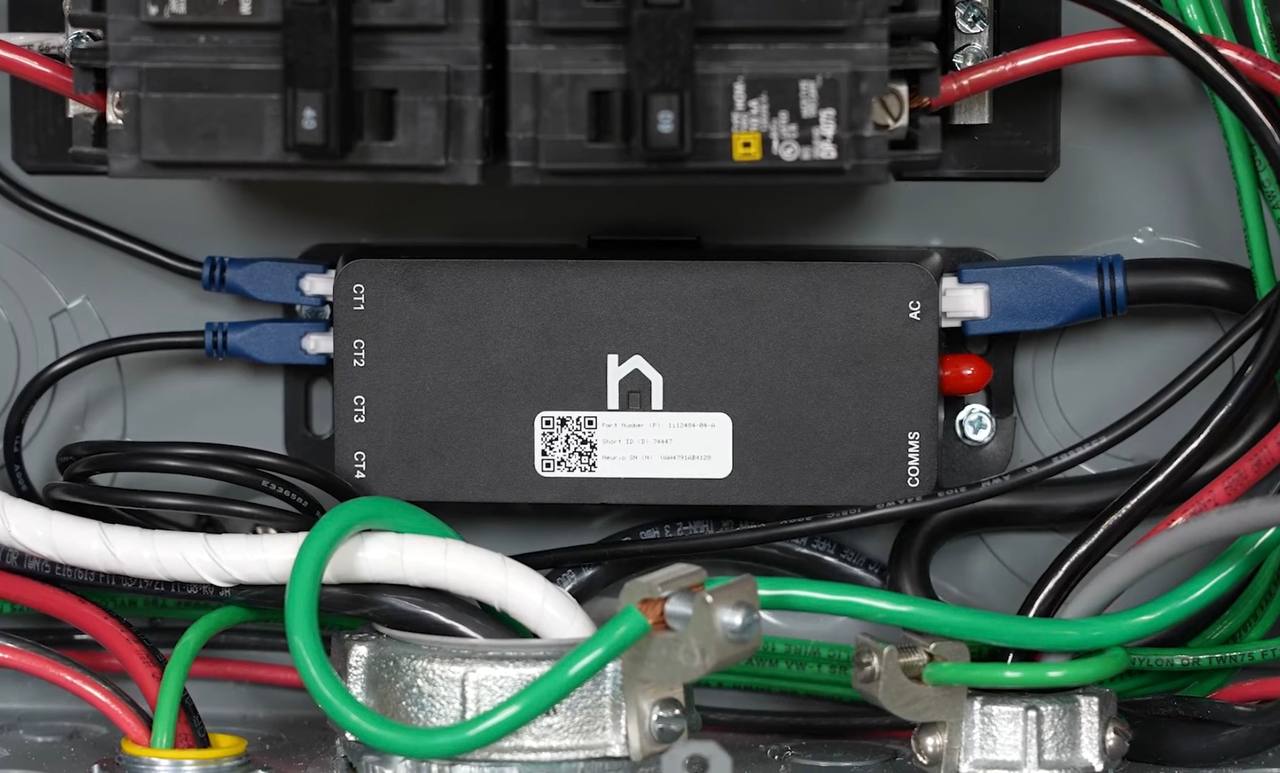

Tesla Neurio energy meter mounted inside the electrical panel for Dynamic Power Management — The Neurio energy meter mounts inside your panel and monitors real-time load. Source: Tesla official installation video.

3. The NEC 220.87 demand calc

This is the secret weapon. National Electrical Code section 220.87 lets us calculate your panel's available capacity using actual measured demand data instead of nameplate ratings. We pull 30 days of 15-minute interval data from PG&E, find your single highest peak, add 25% margin plus the new EV load, and check the result against 80% of panel rating. In most Bay Area homes the answer is “you have plenty of room” — which is why real-world panel demand is usually a fraction of nameplate-based estimates.

When You DO Need a Panel Upgrade

We're honest about it: some homes really do need a new panel before adding an EV charger. The four real cases:

60A service or smaller. DPM can technically work, but charging speeds are slow and you're already maxed out on the rest of your home. Upgrading to 200A future-proofs everything.
Zero available breaker slots. Some old panels are physically full. We try tandem breakers, consolidation, and sub-panel options first — but if there's genuinely no room, the panel has to grow.
Older fuse box (not a breaker panel). Pre-1965 homes occasionally still have screw-in fuse panels. These need replacing for safety reasons regardless of EV plans.
Multiple high-draw appliances on the way. If you're also planning a heat pump HVAC, heat pump water heater, and induction range over the next 2–3 years, the panel upgrade pays for itself. We coordinate the upgrade now so you don't pay for two service visits.

Federal Pacific Stab-Lok and Zinsco panels are a separate category — those are fire risks and we recommend replacing them whether you're adding an EV charger or not.

The DPM Solution — Skip the Upgrade

Tesla's Dynamic Power Management is the most underused feature in residential EV charging. Here's what it does and what it costs:

A Tesla Neurio energy meter (P/N 1938241-00-A) installs inside your panel. Two split-core current transformers (CTs) clip around the main service conductors at the lugs. The meter reads total household amperage 4 times per second and reports it to the Wall Connector over a hardwired RS-485 line. The Wall Connector subtracts that load from your panel's 80% Conductor Limit and charges with whatever's left. Failsafe behavior: if the meter ever loses signal, the Wall Connector defaults to 6A — incapable of overloading any panel rated 60A or larger.

Real Bay Area example: a Daly City 100A panel

A typical 1970s 3-bedroom Daly City home, 100A service, gas furnace and gas water heater. Pulled 30 days of PG&E interval data — peak demand was just 4.1 kW (~17A at 240V). DPM's Max Conductor Limit of 80A means 63+ amps are available for EV charging during peak, the full 80A overnight. The Wall Connector charges at full 48A / 11.5 kW for the entire overnight window. Total install: $1,950 (Wall Connector + DPM). A panel upgrade would have been ~$3,200 with PG&E coordination. Net savings: $1,250.

Cost comparison side-by-side: DPM $550 vs panel upgrade $2,000–$4,500. Both accomplish the same thing for daily charging. The panel upgrade adds capacity for future electrification; DPM doesn't. If you have no plans to electrify the rest of the house in the next few years, DPM is the obvious call.

⚡

Tesla Certified Installer

ChargeWizards is Tesla Certified (CSLB #1134931), which means we source DPM equipment directly from Tesla — including the Neurio energy meter with proprietary firmware that isn't available through retail channels. Not all installers can offer DPM.

ChargeWizards' Free Panel Assessment

Every quote includes a free panel assessment. Send us photos of your main panel (cover off and on, with the breakers visible) and a photo of your meter. We'll tell you within hours which path fits your home: Static PM, DPM, panel upgrade, or sub-panel. We won't recommend an upgrade you don't need — that's the difference between a generalist electrician quoting big and a specialist who installs nothing but EV chargers.

Call (650) 542-8877 or use the quote form below.
