What is Tesla Wall Connector Power Management?
“Power Management” is Tesla's umbrella term for three different ways the Gen 3 Wall Connector can keep EV charging within the safe limits of your electrical system. The choice between them is one of the most consequential decisions in a Bay Area EV install — it determines whether you need a panel upgrade, how fast you actually charge, and whether you can support a second EV down the road.
The three modes are Static, Dynamic, and Group. Each solves a different problem. Static caps a single charger at a fixed rate. Dynamic monitors your whole panel in real time and adjusts the charger's output on the fly. Group lets multiple chargers share a single circuit. They are not interchangeable, and as of Tesla's current firmware they cannot be combined on the same circuit.
Below we walk through each mode, who it's for, and what it costs in a real Bay Area installation.
Static Power Management — How It Works
Static Power Management is the default. At install time, your electrician sets a fixed maximum charge rate based on the breaker that protects your Wall Connector circuit. The charger never exceeds that ceiling — and never adapts to what else is happening in your house. If you set it to 32A, it charges at 32A every time.
Tesla's breaker-to-output table follows the NEC continuous-load rule (80% of breaker rating):
| Breaker | Max Output | Charge Rate (240V) |
|---|---|---|
| 60A | 48A | 11.5 kW (full Wall Connector speed) |
| 50A | 40A | 9.6 kW |
| 40A | 32A | 7.6 kW |
| 30A | 24A | 5.7 kW |
| 20A | 15A | 3.8 kW |
| 15A | 12A | 2.8 kW |
Who it's for: homes with comfortable panel headroom (200A panels with light loads, or 100A panels where the NEC 220.87 demand calc shows plenty of room), and budget-conscious installs that don't need the extra hardware.
Cost: no add-on cost — Static is included with every ChargeWizards Wall Connector install.
Dynamic Power Management (DPM) — How It Works
Dynamic Power Management is the smart version. Instead of a fixed ceiling, DPM watches your panel's live load with a Tesla-supplied energy meter and continuously adjusts the Wall Connector's output to use every available amp without overloading the panel. When your dryer kicks on, DPM throttles charging down. When the dryer cycle ends, DPM ramps the charger back up — typically within seconds.

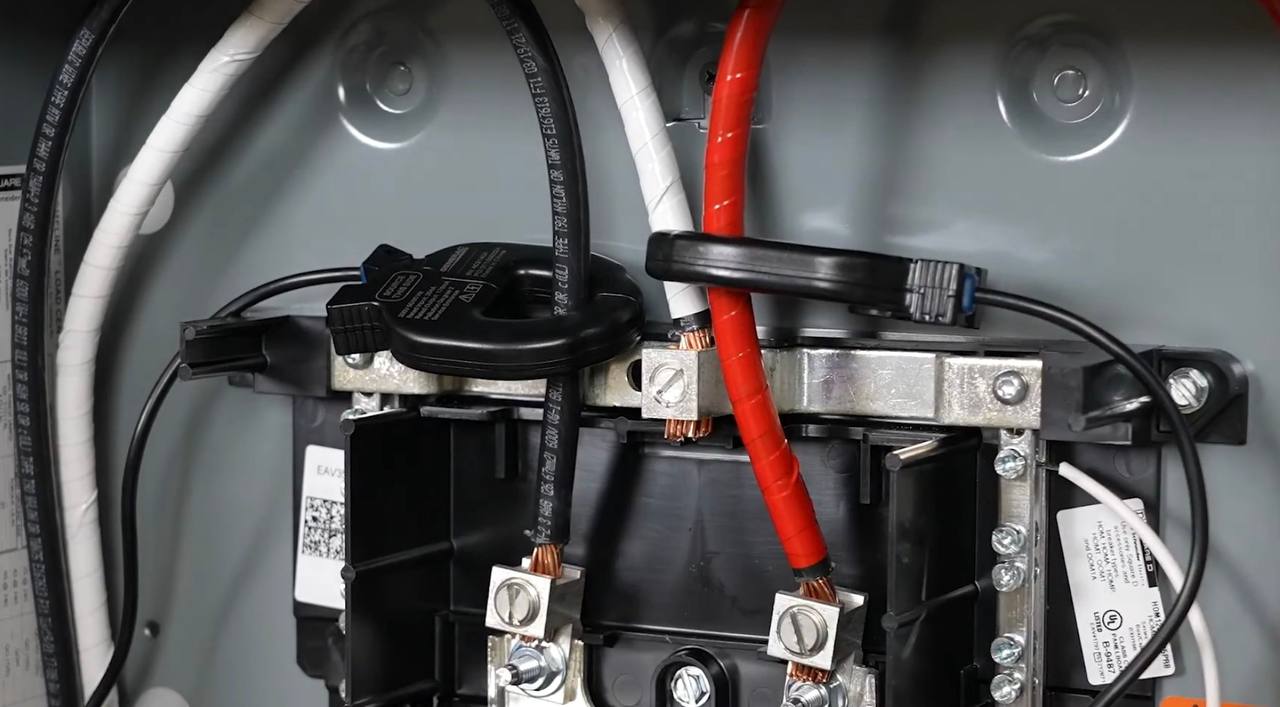

The hardware is specific. DPM requires the Tesla Neurio energy meter (P/N 1938241-00-A), sourced only through Tesla Certified installers. The meter mounts inside your electrical panel and reads two split-core current transformers (CTs) clipped around the main service conductors at the lugs.

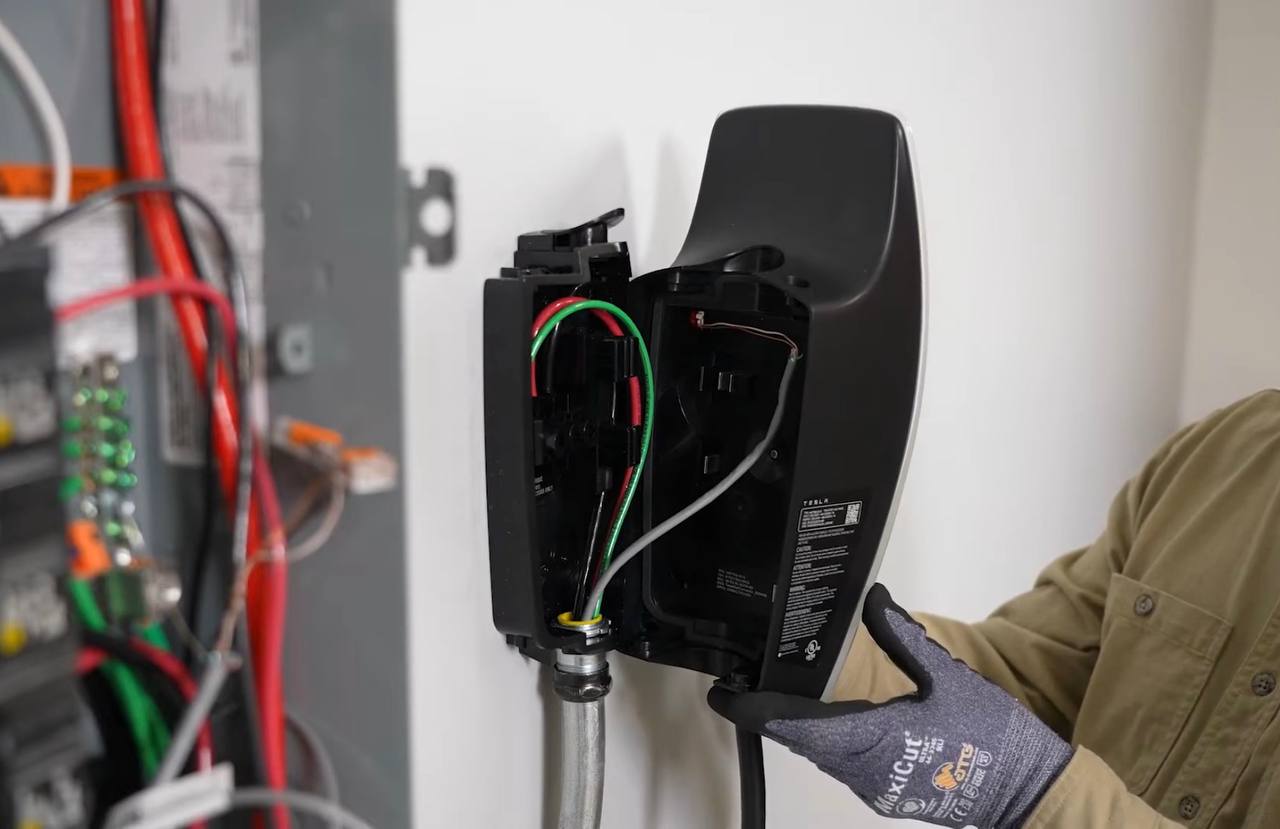

The meter talks to the Wall Connector over a hardwired RS-485 line (max 400 ft run). Inside the Wall Connector, the gray RS-485 communication wire lands alongside the power conductors:
DPM enforces a Max Conductor Limit of 80% of your panel's rated capacity — the NEC continuous-load rule for any load running 3+ hours. A 100A panel has 80A of usable continuous capacity, a 200A panel has 160A. The Wall Connector subtracts your live household load from the Conductor Limit and charges with whatever's left. If the meter ever loses signal, the Wall Connector falls back to a safe 6A — it cannot overload the panel.
Real-time example: a Burlingame 100A panel
It's 7pm. The dryer is running (24A) and the oven is preheating (16A). DPM sees 80A − 40A = 40A available and charges your Model Y at 40A / 9.6 kW. By 9pm both appliances are off — DPM ramps the Wall Connector to its full 48A / 11.5 kW. By morning the car has gained 80+ miles of range, even on a 100A panel.
Who it's for: tight 100A or 125A panels, daily long-distance drivers, and anyone who wants to skip a $2,000–$4,500 panel upgrade.
Cost: $550 installed by ChargeWizards — includes the Neurio meter, CTs, RS-485 wiring, and Tesla Pros app commissioning. Add to a standard $1,600–$2,000 Wall Connector base install.
Tesla Certified Installer
ChargeWizards is Tesla Certified (CSLB #1134931), which means we source DPM equipment directly from Tesla — including the Neurio energy meter with proprietary firmware that isn't available through retail channels. Not all installers can offer DPM.
Group Power Management — How It Works
Group Power Management is the multi-EV solution. Up to six Gen 3 Wall Connectors can be wired onto a single circuit and coordinate wirelessly to share the available current — minimizing total charge time across all connected vehicles. The chargers talk to each other directly; no hub, no cloud, no internet required.
When one car finishes charging, the other receives more current automatically. When both plug in at once, the chargers split the available power. You can mix Wall Connector variants (standard NACS, Universal NACS+J1772) on the same group — useful for households with a Tesla plus a non-Tesla EV.
Who it's for: two-EV households, condo and HOA installations where multiple residents share a service drop, and small fleets (4–6 vehicles) running off one panel.
Cost: the second-and-beyond Wall Connectors install at a discount versus running brand-new independent circuits — typically $1,200–$1,800 per additional unit depending on conduit length. We quote full-system pricing once we've seen the panel.
Which Should You Choose?
| Your Situation | Recommended Mode |
|---|---|
| 200A panel, one EV, light loads | Static at 60A breaker |
| 100A or 125A panel, one EV, daily long commute | DPM ($550) |
| Two Teslas (or 2+ EVs) | Group Power Management |
| Condo / HOA with shared service | Group Power Management |
| Small fleet (3–6 EVs) | Group Power Management |
| Three-phase service or non-Tesla chargers | Custom design — call us |
Not sure which fits your home? ChargeWizards offers a free in-person panel assessment with every quote — we'll tell you honestly which mode makes sense before we touch a tool.
Free tools from ChargeWizards
Based on the Tesla Wall Connector Application Note: Dynamic Power Management (v1.2, January 2024) and Tesla Support documentation. ChargeWizards is a Tesla Certified Installer (CSLB #1134931).
